Next-Generation Low-Cost Reflector
PPG, under the Baseload CSP FOA, is producing a durable first-surface mirror with improved optical performance and geometry design to reduce the unit cost of the reflector subcomponent in a concentrating solar power (CSP) application.
PPG Industries is creating an ultra-large, front-surface glass mirror with an inorganic protective hardcoat. This approach is working toward reduced operation and maintenance costs and a lower overall unit cost of the reflector assembly. Moving to a larger-sized glass reflector also reduces manufacturing costs because fewer mirrors are needed. The project aims to achieve an estimated levelized cost of electricity (LCOE) of less than $0.08/kWh.
The current LS3-sized mirrors use only 55%–65% of the available capacity of existing glass coating equipment. PPG is pioneering a design that:
- Represents a size increase of 2.5 times more than current mirrors

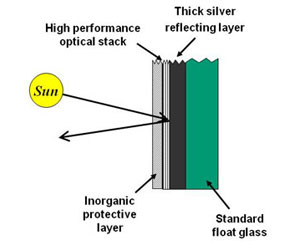

- Uses a first-surface mirror as opposed to a second-surface mirror
- Adds a proposed alumina hardcoat to eliminate the passage of light through the glass material while also providing durability and anti-soiling properties
- Achieves a reflectivity of 97%.
Publications, Patents, and Awards
At this time, this project does not have published articles, patents, or awards.
