Pumping System Assessment Tool

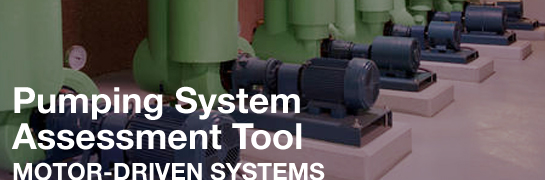

    This photo shows a series of industrial pumps connected to industrial motors. The text across the image reads "Pumping System Assessment Tool" and underneath are the words "Motor-Driven Systems."

    Download PSAT now!
    Version: 2008
    Release Date: February 6, 2008
    Release Notes
    Metric Unit Measurements: Yes

    The Pumping System Assessment Tool (PSAT) is a free online software tool to help industrial users assess the efficiency of pumping system operations. PSAT uses achievable pump performance data from Hydraulic Institute standards and motor performance data from the MotorMaster+ database to calculate potential energy and associated cost savings. The tool also enables users to save and retrieve log files, default values, and system curves for sharing analyses with other users.

    Intended Users

    The tool is designed for industrial plant managers and personnel who are interested in improving pumping system efficiency and measuring potential savings opportunities in both dollars and electrical energy savings.

    System Requirements

    PSAT will operate on the following PC's:

    • 64-bit computer running Windows 2000, Windows Vista, Windows XP, and Windows 7
    • Microsoft Office Suite 2007 and 2010

    Inputs

    To use PSAT, users must input the following data:

    • Pump style
    • System of units
    • Number of stages
    • Pump and motor speed(s)
    • Motor nameplate ratings
    • Operating duty (fraction of time the equipment runs at the specified condition)
    • Energy cost rates
    • Flow rate
    • Pump head (calculated from user-supplied pressure and line dimensional data)
    • Electric power or current and voltage

    Outputs

    Based on input, PSAT will provide the following:

    • Estimated pump and motor efficiencies and shaft powers for both existing and top-of-the-line commercially available equipment of "optimal" equipment
    • Annual energy use and energy costs for existing and optimal equipment
    • Potential annual energy savings
    • Optimization rating, which is analogous to a grade (rating of 100 is consistent with top-of-the-line commercial equipment)

    Release Notes

    This version replaces earlier versions of PSAT. However, if an earlier version is already installed, you run can both versions simultaneously, if desired. If you are currently using PSAT 2004, the new tool contains a utility to update log and summary files to PSAT 2008. This version of the tool and its accompanying valve tool support data measurements in either English or metric units.

    Additional Information

    PSAT Qualification

    DOE offers a qualification program for pumping system specialists in the use of PSAT software. Industry professionals who successfully complete a PSAT qualification workshop and exam receive recognition from DOE as Qualified Pump System Specialists. Then Specialists can apply this tool in their own plants or help industrial customers identify ways to improve pumping system efficiency. More details on PSAT qualification.
